The latest advancement in deep-cut natural gas processing to recover Natural Gas Liquids (NGLs).
The Split Absorber Reflux (SABR) family of processes are the latest advancement in deep-cut natural gas processing to recover Natural Gas Liquids (NGLs). SABR is developed and licensed by Gas Liquids Engineering. SABR combines ultra-deep propane (C3) or ethane (C2) extraction with high energy efficiency, and high turndown capability.
For propane recovery, SABR breaks the recovery limits of conventional shallow-cut gas processing, without the need for turboexpanders or brazed aluminum heat exchangers. SABR can also maintain very high recovery rates even when turned down to low flowrates, with an attainable turndown of 60%.
The process has a range of potential applications, including large scale facilities, where energy consumption is a primary concern, and small scale facilities. Moderately deep recovery of propane or ethane can also be obtained with SABR using no refrigeration at all, enabling liquids recovery with reduced equipment requirements, where high pressure natural gas is available.
Split Absorber Reflux
Process Type
Two tower process
Expansion
No turboexpansion required
Cooling
Propane refrigeration + shell & tube HX
Turndown
60% attainable
C3 Recovery
Up to 99%
C2 Recovery
Optional 99%
Figure 1: SABR Ethane Extraction Using Propane Refrigeration
A number of modified versions of SABR have been developed to suit a variety of applications including:

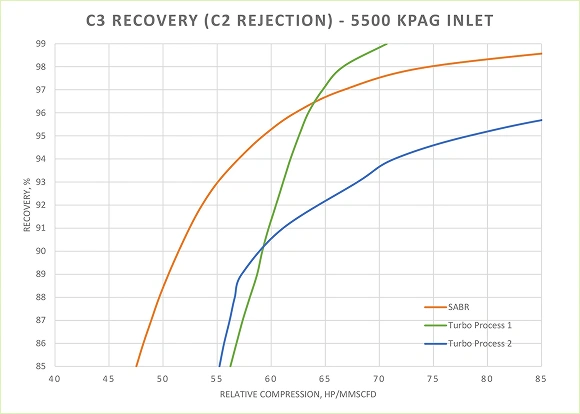

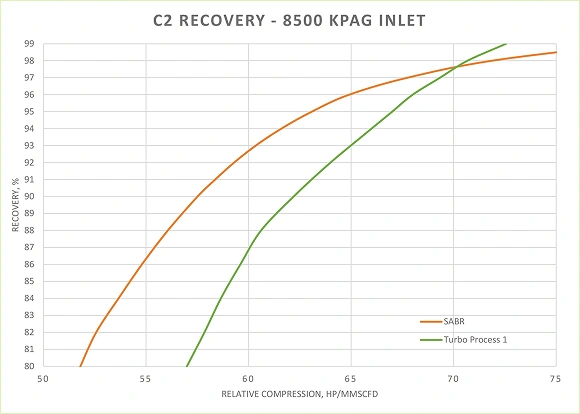

SABR can achieve high recovery rates with low compression requirements relative to conventional turboexpander processes.
An advancement on the conventional shallow-cut gas plant, SABR breaks the limits of recovery without requiring costly turboexpanders or brazed aluminum heat exchangers.

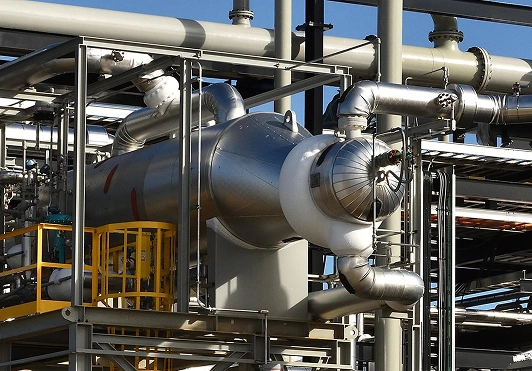

GLE is a full service EPCM (Engineering, Procurement, Construction Management) company with four decades of gas processing experience.
Please contact an application specialist to discuss how GLE can increase your gas liquids revenue with advanced or off-patent processes.
